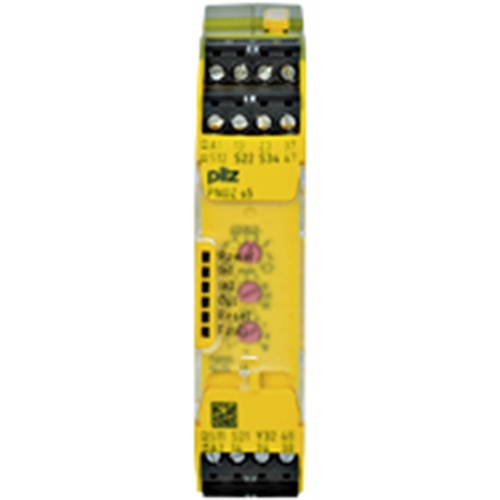

| Type: | PNOZ s5 |
| Description: | PILZ (750135) SAFETY MONITORING RELAY |
| Product Version: | 1 |
| Approvals: | CE, cULus Listed, TÜV, GOST, CCC, KOSHA |
| Category In Accordance With: | EN ISO 13849-1 |
| Application Options: | Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring, Light beam device mon. Type 4, Light beam device mon. Type 2 with t/p, Light beam device mon. Type 2 w/o t/p, Safe delay-on de-energ. timer |
| Operating Modes: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test, Prog. delay-on de-energisation |
| PL EN ISO 13849-1 inst. Contacts: | e |
| PL EN ISO 13849-1 del. Contacts <30s: | e |
| PL EN ISO 13849-1 del. Contacts >30s: | e |
| SIL CL IEC 62061 inst. Contacts: | 3 |
| SIL CL IEC 62061 del. Contacts <30s: | 3 |
| SIL CL IEC 62061 del. Contacts >30s: | 3 |
| Product Standard: | EN 60947-5-1 |
| Standards: | EN 60204-1, EN 62061, EN 954-1, VDE 0113-1 |
| Supply Voltage (V): | 48 - 240 |
| Supply Voltage Type: | AC/DC |
| Supply Voltage Range (V): | 48 - 240 |
| Terminal Style: | Plug-in |
| Terminal Type: | Screw terminal |
| Cat. inst. saf. Contacts: | 4 |
| Cat. del. saf. Contacts < 30s: | 4 |
| Cat. del. saf. Contacts > 30s: | 4 |
| Number Of Instantaneous Safety Contacts: | 2 |
| Number Of Delayed Safety Contacts: | 2 |
| Number Of Semiconductor Outputs: | 1 |
| Stop Category: | 0/1 |
| Max. Current At DC13 I (6 cycles/min) (A): | 4 |
| Max. Current At AC15 (A): | 3 |
| Ambient Temperature: | -10 - 55 °C |
| Make: | Pilz |
| Series: | PNOZ s5 |
| Product Range: | Time Monitoring Relay |
| Height (mm): | 98 |
| Width (mm): | 22.5 |
| Depth (mm): | 120 |
| Weight (kg): | 0.265 |
