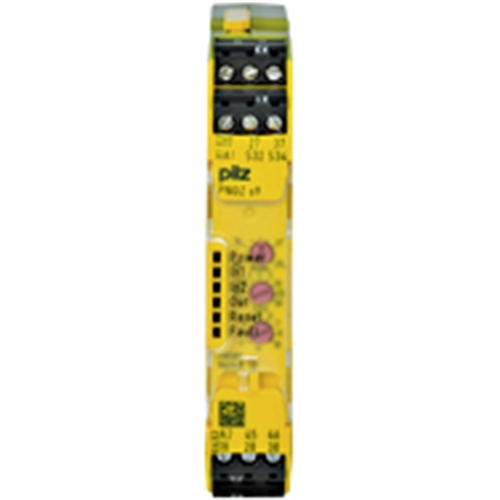

| Type: | PNOZ s9 |
| Description: | PILZ SIGMA (751109) RELAY CAGE CLAMP 24V |
| Product Version: | 1 |
| Approvals: | CE, cULus Listed, TÜV, GOST, CCC, KOSHA |
| Category In Accordance With: | EN 954-1, EN ISO 13849-1 |
| Application Options: | Instantaneous contact expansion, Delayed contact expansion, Safe delay-on de-energ. timer, Safe delay-on energisation timer, Safe pulsing timer |
| PL EN ISO 13849-1 del. Contacts <30s: | e |
| PL EN ISO 13849-1 del. Contacts >30s: | e |
| SIL CL IEC 62061 del. Contacts <30s: | 3 |
| SIL CL IEC 62061 del. Contacts >30s: | 3 |
| Standards: | EN 1088, EN 60204-1, EN 62061, EN 954-1, EN ISO 12100-1, EN ISO 12100-2, VDE 0113-1 |
| Supply Voltage (V): | 24 |
| Supply Voltage Type: | DC |
| Terminal Style: | Plug-in |
| Terminal Type: | spring-loaded terminal, plug in |
| Cat. del. saf. Contacts < 30s: | 4 |
| Cat. del. saf. Contacts > 30s: | 4 |
| Number Of Delayed Safety Contacts: | 3 |
| Safety Contact Delay Type: | Delay-on de-energisation, delay-on energisation, pulsing |
| Number Of Delayed Auxiliary Contacts: | 1 |
| Auxiliary Contact Delay Type: | pulsing, delay-on energisation, Delay-on de-energisation |
| Stop Category: | 0/1 |
| Max. Current At DC13 I (6 cycles/min) (A): | 5 |
| Max. Current At AC15 (A): | 5 |
| Ambient Temperature: | -15 - 55 °C |
| Make: | Pilz |
| Series: | PNOZ s9 |
| Product Range: | Time Monitoring Relay |
| Height (mm): | 100 |
| Width (mm): | 17.5 |
| Depth (mm): | 120 |
| Weight (kg): | 0.19 |
