6010603

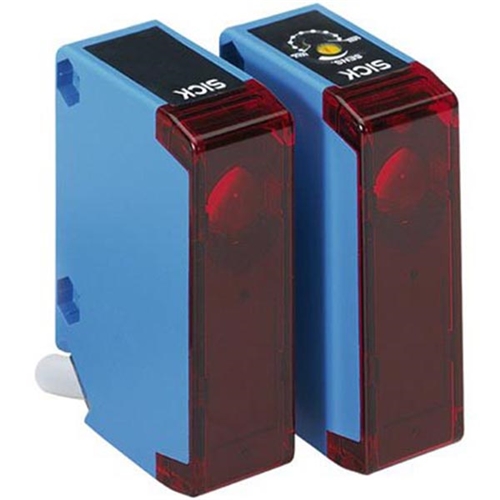

Sick Through Beam Sensor WS/WE250-S132

Sick

Your cart total:

.

Checkout

Discontinued

6010603











































Manufacturer:SICK
Model:WS/WE250-S132
Height (mm):60
Width (mm):20
Depth (mm):43
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Rectangular
Sensing range max:0 m … 25 m
Sensing range:0 m … 20 m
Type of light:Visible red light
Light source:LED
Light spot (distance):1.5 m (20 m)
Sensitivity Adjustment:Potentiometer, 2-turn
Angle of dispersion:4°
Supply voltage:12 V DC … 240 V DC, 24 V AC/DC … 240 V AC/DC
Power consumption, sender:< 2 VA
Power consumption, receiver:< 2 VA
Output type:Relay
Output function:Change-over contacts
Switching mode:Light switching
Output characteristic:Electrically isolated
Switching current (switching voltage):3 A (240 V AC), 3 A (30 V DC)
Response time:< 15 ms
Switching frequency:33 Hz
Angle of reception:20°
Connection type:Cable, 5-wire, 2 m
Cable material:PVC
Conductor cross-section:0.76 mm²
Cable diameter:6.3 mm
Circuit protection:A, C
Protection class:II
Housing material:ABS, Plastic
Optics material:PC
Enclosure rating:IP 67
Items supplied:Mounting bracket BEF-W250
Usage category:AC-15, DC-13, According to EN 60947-1
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:NRNT2.E128350 & NRNT8.E128350
Discontinued:The product has been discontinued. Replacement product: WSE250-2R1531

No extended details available.
