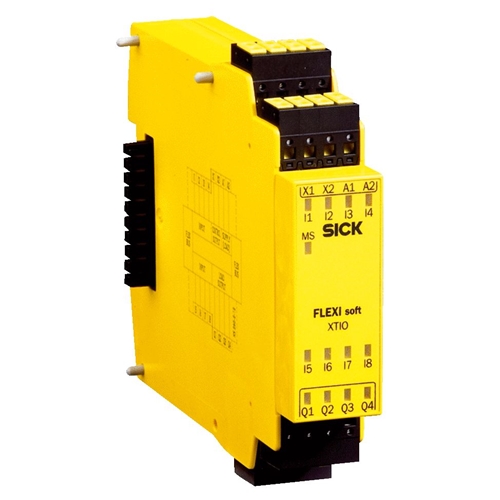

| Manufacturer: | SICK |
| Model: | FX3-XTIO84002 |
| Height (mm): | 96.5 |
| Width (mm): | 22.5 |
| Depth (mm): | 120.8 |
| Weight (kg): | 0.164 |
| Series: | Safety Controllers |
| Emergency stop pushbuttons: | Yes |
| Opto-electronic protective devices: | Yes |
| Non-contact safety switches: | Yes |
| Two-hand control systems: | Yes |
| Electro-mechanical safety switches: | Yes |
| Testable opto-electronic protective devices type 2: | Yes |
| Operating mode selector switch: | Yes |
| Control switches with lamp: | Yes |
| Muting sensors: | Yes |
| Muting lamp: | Yes |
| Safety integrity level: | SIL3 (IEC 61508), SILCL3 (IEC 62061) |
| Category: | Category 4 (EN ISO 13849) |
| Performance level: | PL e (EN ISO 13849) |
| PFHd: | 4.8 * 1E-09 (EN ISO 13849), 9.0 * 1E-10 (EN ISO 13849) |
| TM (mission time): | 20 a |
| Operating mode switching: | Yes |
| Fast shut-off: | Yes |
| Supply voltage: | 24 V DC (16.8 V DC … 30 V DC) |
| Type of supply voltage: | PELV or SELV (the current of the power supply that powers the main unit must be limited to a maximum of 4 A, either through the power supply itself or a fuse.) |
| Power consumption: | 3 W |
| Protection class: | EN 61140 |
| Short-circuit protection: | 4 A gG |
| Number of inputs: | 8 single-channel |
| Input voltage HIGH: | 13 V DC … 30 V DC |
| Input voltage LOW: | -5 V DC … 5 V DC |
| Input current HIGH: | 2.4 mA … 3 mA, 3.8 mA |
| Input current LOW: | -2.5 mA … 2.1 mA |
| Output current: | 2 A |
| Output voltage HIGH: | 16 v DC … 30 v DC |
| Switch-on time of inputs: | 18 s |
| Configuration interface: | Internal bus (FLEX BUS +) |
| Enclosure rating terminals: | IP 20 (EN 60529) |
| Protection class housing: | IP 40 (EN 60529) |
| Ambient operating temperature: | -25 °C ... 55 °C |
| Storage temperature: | -25 °C ... 70 °C |
| Air humidity: | 10 % ... 95 %, non-condensing |
| Climate conditions according to: | EN 61131-2 (55 °C operating temperature, 95% rel. humidity) |
| Electromagnetic compatibility (EMC): | EN 61000-6-2, EN 55011, EN 61131-2 (zone B) |
| Vibration resistance: | 5 Hz … 500 Hz (EN 61131-2) |
| Connection type: | Cable gland |
| Connection type: | Plug-in spring terminals |
