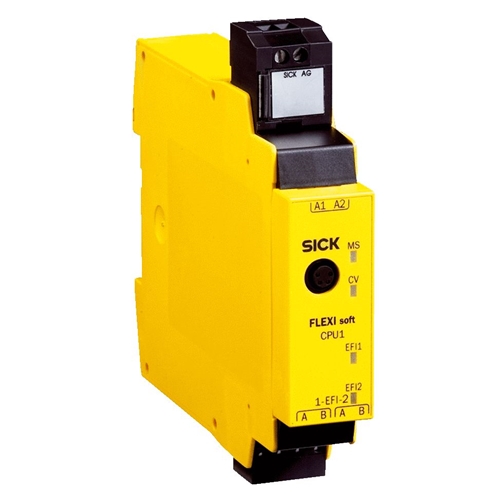

| Manufacturer: | SICK |
| Model: | FX3-CPU130002 |
| Height (mm): | 96.5 |
| Width (mm): | 22.5 |
| Depth (mm): | 120.8 |
| Weight (kg): | 0.119 |
| Series: | Safety Controllers |
| Safety integrity level: | SIL3 (IEC 61508), SILCL3 (IEC 62061) |
| Category: | Category 4 (EN ISO 13849) |
| Performance level: | PL e (EN ISO 13849) |
| PFHd: | 1.69 * 1E-09 |
| TM (mission time): | 20 a |
| Reset/restart: | Manual/automatic/configurable |
| External device monitoring (EDM): | Yes |
| Muting: | Yes |
| Operating mode switching: | Yes |
| Number of logical connections: | 255 |
| Logical functions: | AND, NOT, OR, XNOR, XOR |
| Application-specific logical functions: | Operating mode switch, Muting, Emergency stop, Presses, Two-hand control |
| Safe device communication via EFI/SDL: | Yes |
| Supply voltage: | 24 V DC (16.8 V DC … 30 V DC) |
| Type of supply voltage: | PELV or SELV (the current of the power supply that powers the main unit must be limited to a maximum of 4 A, either through the power supply itself or a fuse.) |
| Power consumption: | 2.5 W |
| Protection class: | EN 61140 |
| Short-circuit protection: | 4 A gG |
| Number of EFI interfaces: | 2 |
| Switch-on time of inputs: | 18 s |
| Configuration interface: | Internal bus (FLEX BUS +) |
| Enclosure rating terminals: | IP 20 |
| Protection class housing: | IP 40 |
| Ambient operating temperature: | -25 °C ... 55 °C |
| Storage temperature: | -25 °C ... 70 °C |
| Air humidity: | 10 % ... 95 %, non-condensing |
| Climate conditions according to: | EN 61131-2 (55 °C operating temperature, 95% rel. humidity) |
| Electromagnetic compatibility (EMC): | EN 61000-6-2, EN 55011, EN 61131-2 (zone B) |
| Vibration resistance: | 5 Hz … 500 Hz (EN 61131-2) |
| Connection type: | Plug |
