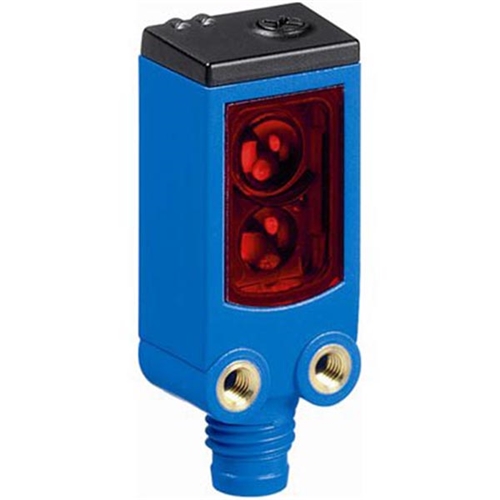

WTB4-3N1361 PHOTO DETECTOR

Sick

Your cart total:

.

Checkout

0

1028101






































Manufacturer:SICK
Model:WTB4-3N1361
Height (mm):39.5
Width (mm):16
Depth (mm):12
Weight (kg):0.03
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range max:4 mm … 150 mm
Sensing range:15 mm … 150 mm
Type of light:Visible red light
Light source:PinPoint LED
Wave length:650 nm
Sensitivity Adjustment:Potentiometer, 5-turn
Light spot size (distance):Ø 7 mm (50 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 20 mA
Output type:NPN
Switching mode:Light switching
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Cable, 3-wire, 2 m
Cable material:PVC
Conductor cross-section:0.14 mm²
Cable diameter:3.4 mm
Circuit protection:A, C, D
Protection class:III
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 66, IP 67
Ambient operating temperature:-40 °C … 60 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRKH.E181493 & NRKH7.E181493
